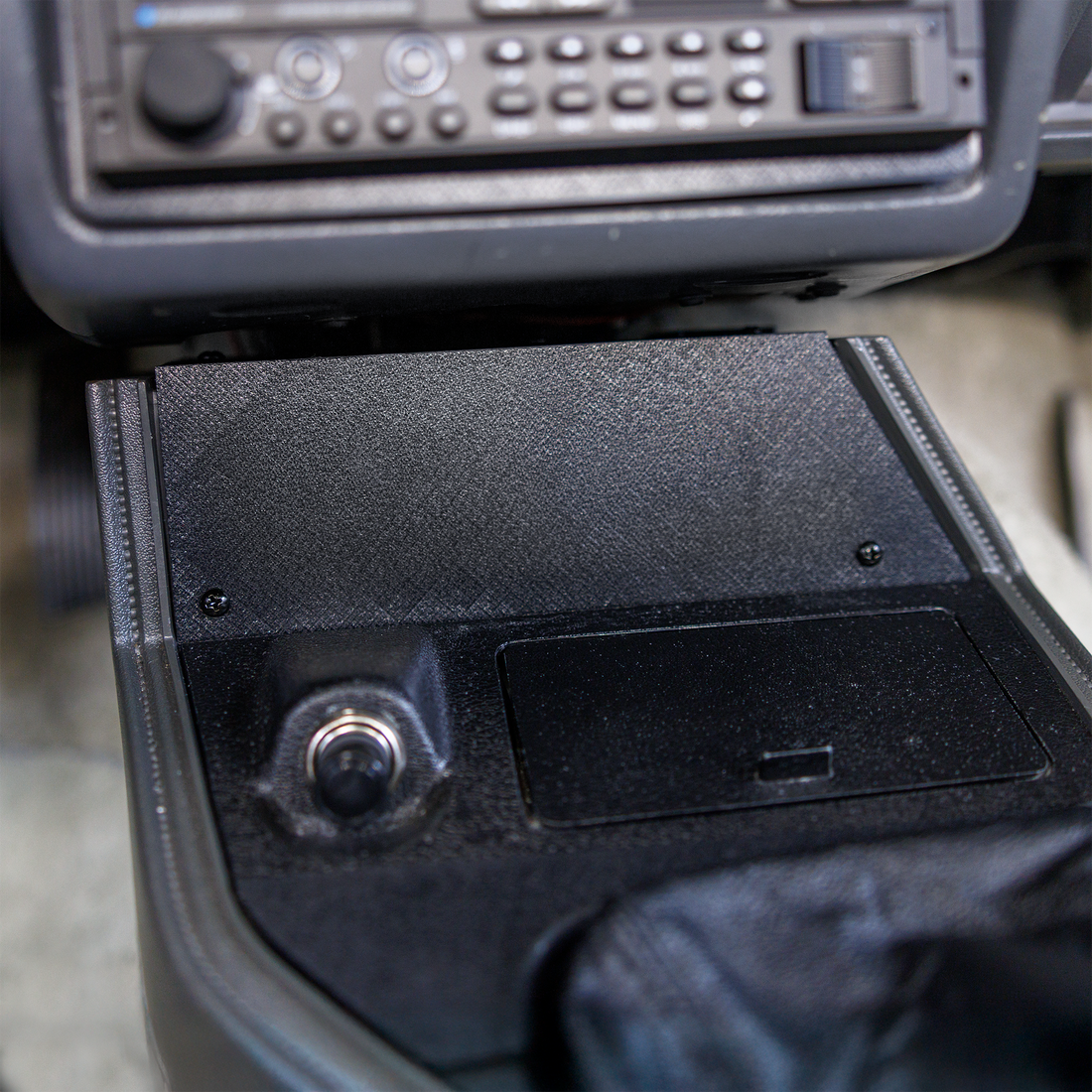

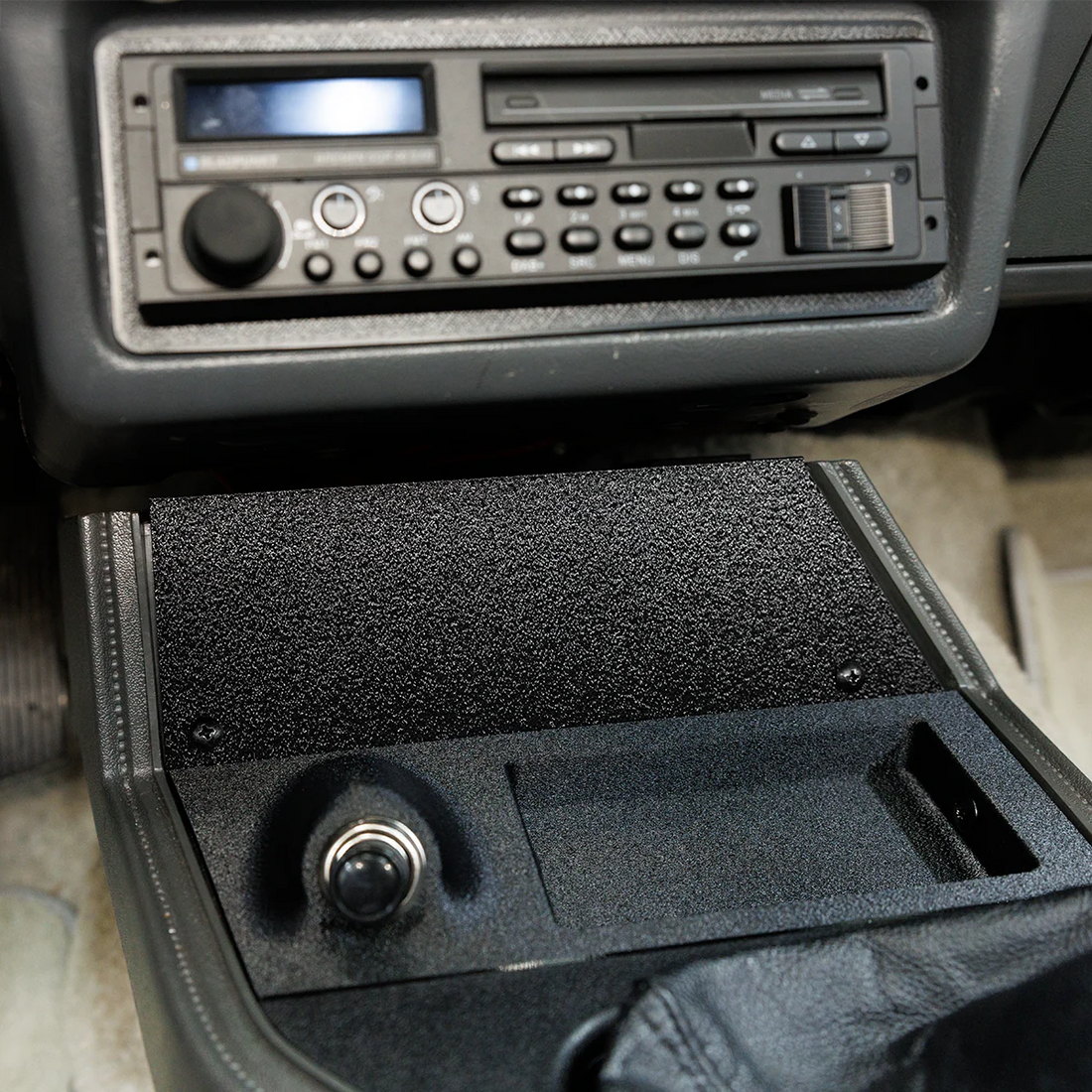

Blank Bezel for Center Console
Make sure to go through all the instructions before beginning the installation.
These instructions apply to the Blank Bezel for Center Console.
Hardware Included
Ensure the following hardware is included with your Blank Bezel:
- (2) #8-32 x 1 1/4" screws
- (2) 4" zip ties (1 spare)
- (2) Mounting nuts
Mounting Points
There are three mounting points:
- (2) on the front using the included mounting nuts
- (1) at the top rear secured with the included 4" zip tie
The choice to use a zip tie instead of a screw was made to simplify access when removing the bezel, eliminating the need to remove the center console.
Mounting Nut Installation
The included mounting nuts will slide over the factory mounting tabs on the center console. The threads should be positioned behind the tab (toward the front of the car), with the cutout facing you.
Installation
Once the center console has been trimmed properly and the mounting nuts are installed, you are ready for installation.
- Remove ash tray panel and disconnect cigarette lighter
Note: center console may need to be removed
- Proceed with mounting the Blank Bezel
- Insert the front (2) screws and hand tighten
- Secure (1) 4" zip tie to the top mount and tighten
- Once all 3 mounting points are attached to the center console, tighten the front (2) screws
IMPORTANT: Do not overtight screws as damage may occur.
