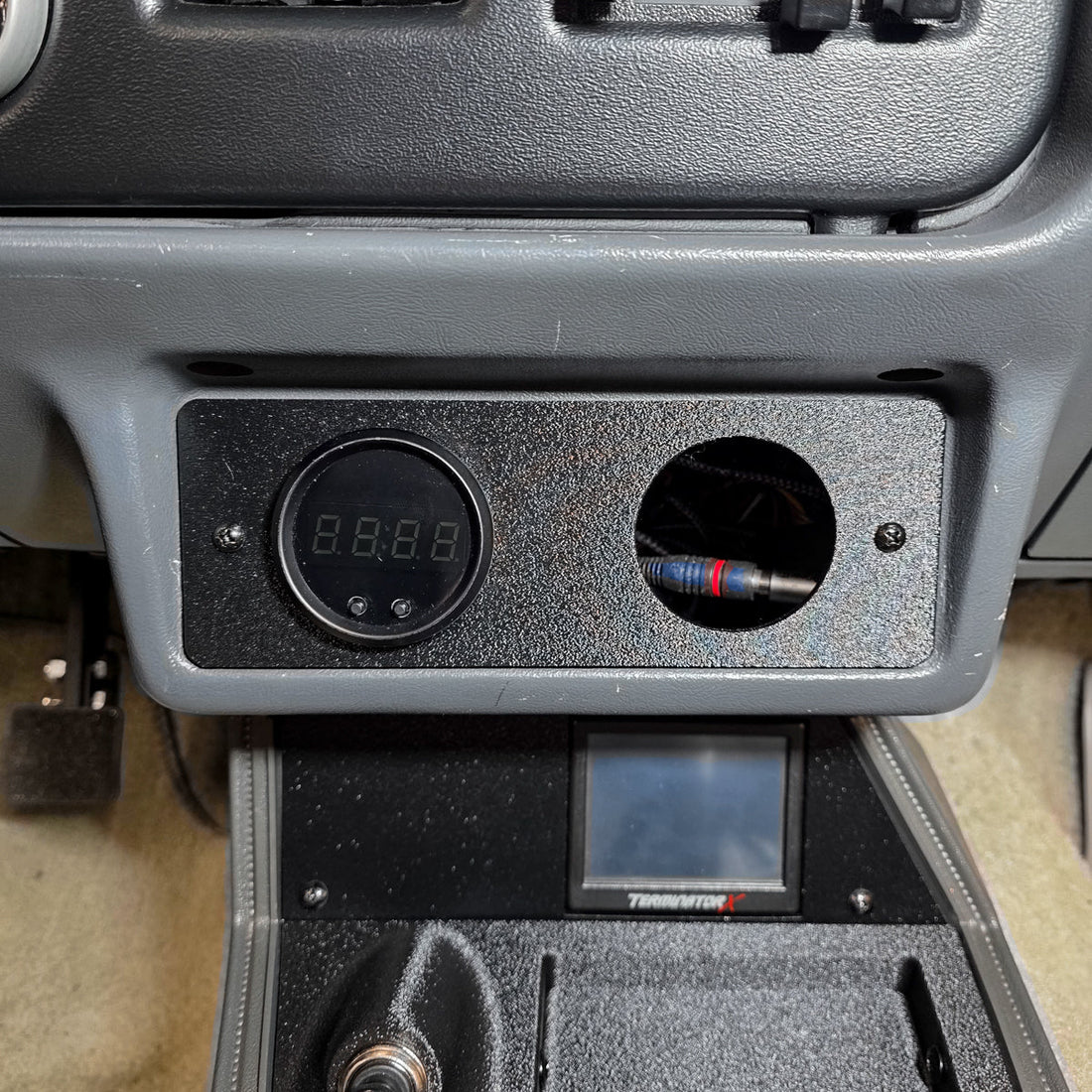

Radio Delete Panel

Make sure to go through all the instructions before beginning the installation.

These instructions apply to all variants of the Radio Delete Panel.

*1979 - 1984 Mustangs will require modifications to fit a Single DIN radio: 2 inches high by 7 inches wide (approximately 50 mm × 180 mm)

What’s Included

• (1) Textured Faceplate
• (1) Backing Plate
• (2) #8-32 x 3/4" Mounting Screws

The Radio Delete Panel attaches securely using the included hardware and backing plate. To install, slide the backing plate through the Single DIN opening and use a small piece of masking tape to secure the top and bottom.

The masking tape will be hidden behind the front plate.

Once the backing plate is secured with the masking tape, secure the face plate to the backing plate using the supplied #8-32 x 3/4" mounting screws.  The Radio Delete Panel will be clamped on to the center console radio opening.

IMPORTANT: Do not overtight screws as damage may occur.
